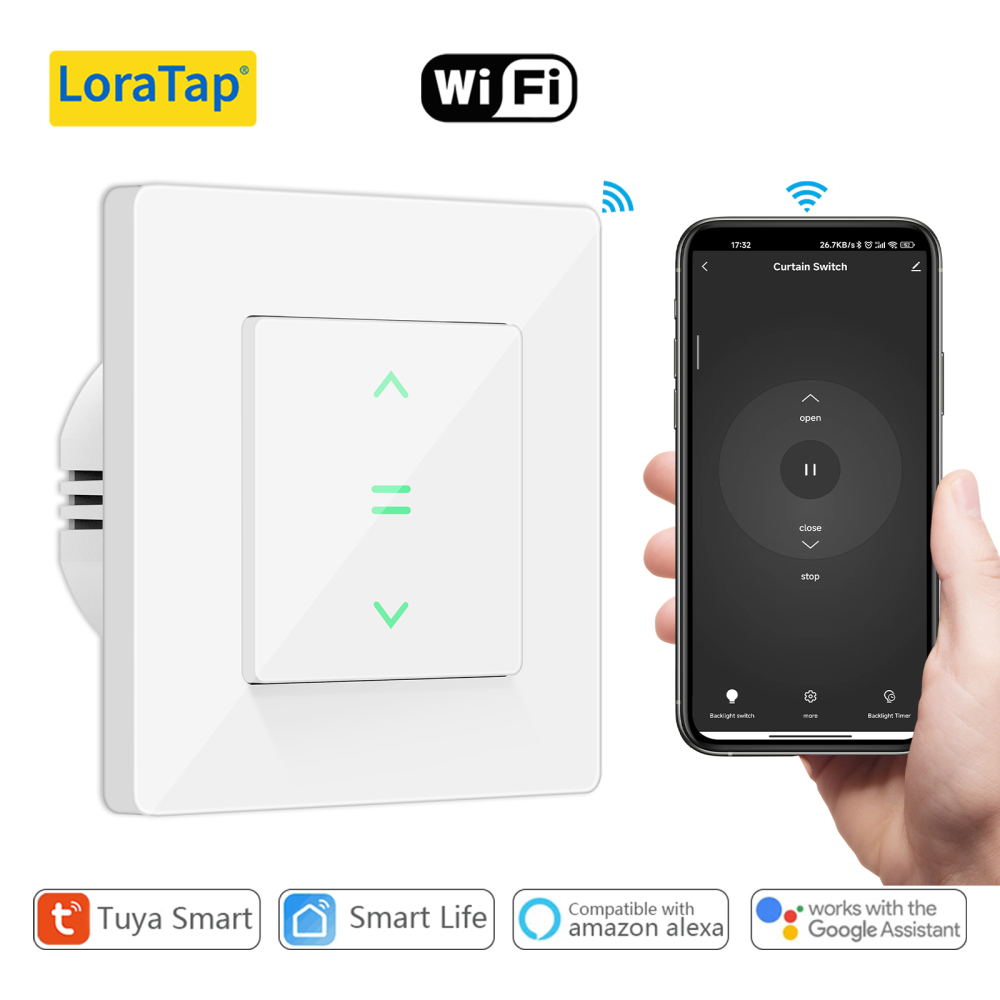

Features
- Two installation sizes options: 86*86mm and 50*50mm.
- App Remote Control: Support Smart Life APP /Tuya APP.- Backlight Function: You can turn the backlight function on or off in the app.
- Voice Control: Compatible with Amazon Alexa, Google Home.
- Touch Panel Control: Tempered glass touch panel, safe and high quality, moisture-proof, safe operation even with wet hands.
- Running Time Setting: The running time can be set from 1-120 seconds, suitable for the use of large blinds.
- Timer and Schedule: You can set a timer to open or close the curtains at a specified time.
- Device Sharing: You can create group in the APP to manage all the blinds in your house and share the devices to all your family members.
Specification
Input voltage: 100-250VAC, 50/60Hz
Wiring: Neutral Wire, L1, L2, Earth Wire
Max Load: 600W
Wireless Protocol: Wi-Fi 2.4 GHz 802.11 b / g / n (Not support 5Ghz Wi-Fi)
Standby Consumption: below 0.5W
Colour: White
Compatible with: Tubular Motor with 4 wires
This is a Wi-Fi only Curtain Switch, it can’t work with our RF curtain remote. Please don’t buy the extra RF remote to add the remote control, they are not compatible.
- Please check your motor is with 4 wires (Blue Wire, Brown wire, Black Wire, Green/Yellow Wire) before you buy our.
Backlight Function
- The backlight can be turned on and off in the app without disturbing your sleep.
- The backlight can be set to a timer switch or off, which you can set according to your habits.
- Switch standby backlight display light green, working display light blue.
Voice Control
- Compatible with Amazon Alexa, Google Home.
- You can control curtains with voice control.
Touch Panel Control
- Tempered glass touch panel, safe and high quality, moisture-proof, safe operation even with wet hands.
- You can open and close curtains with touch control.
App Control
- Support Smart Life APP /Tuya APP.
- Mobile app remote control to open or close curtains.

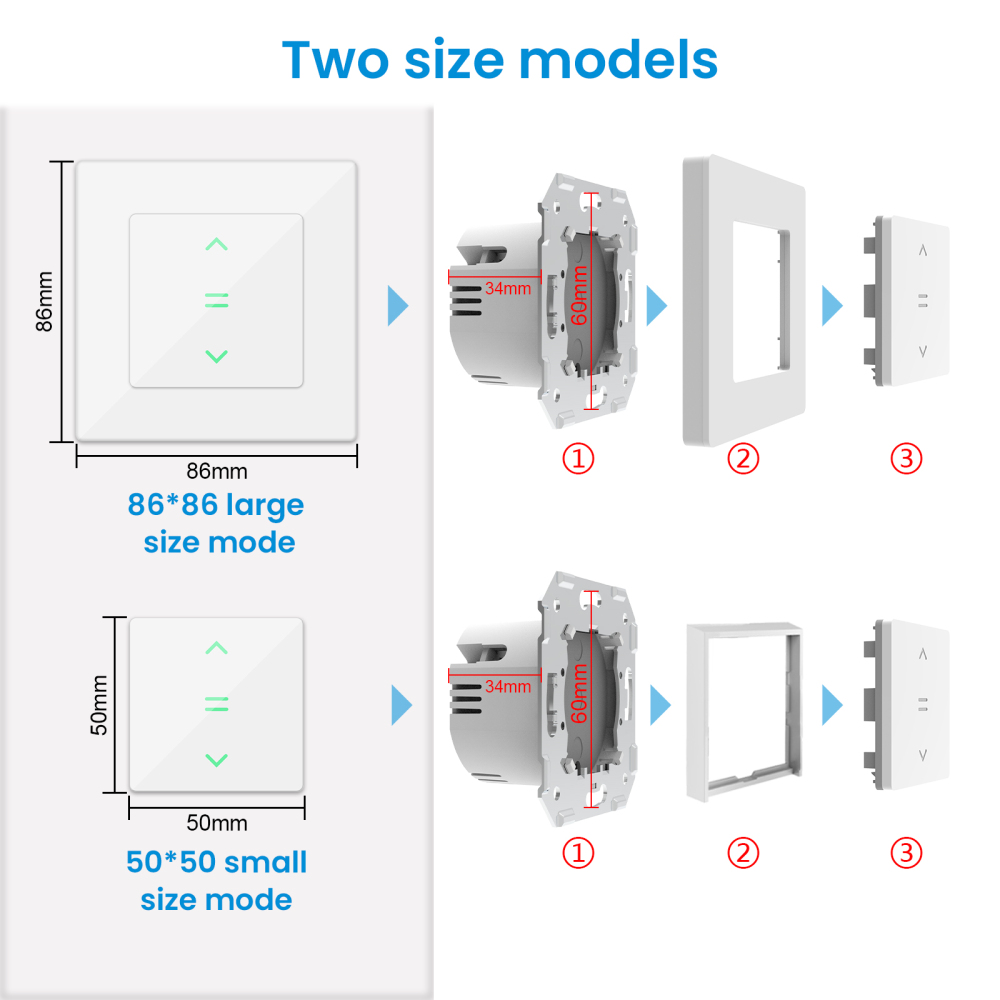

To size models
Dual size model 86*86mm and 50*50mm
Timer and Schedules
You can set a timer to open or close the curtains at a specified time.
What's in the box?
1 * Curtain Switch
1 * User Guide
1 * Terminal
2 * Screws Kit
1 * Blue Wire
This switch is WiFi touch switch only, not with RF, it can't work with the RF remote in our store.
Please don’t buy any extra RF remote in our store to work with this WiFi only curtain switch.
