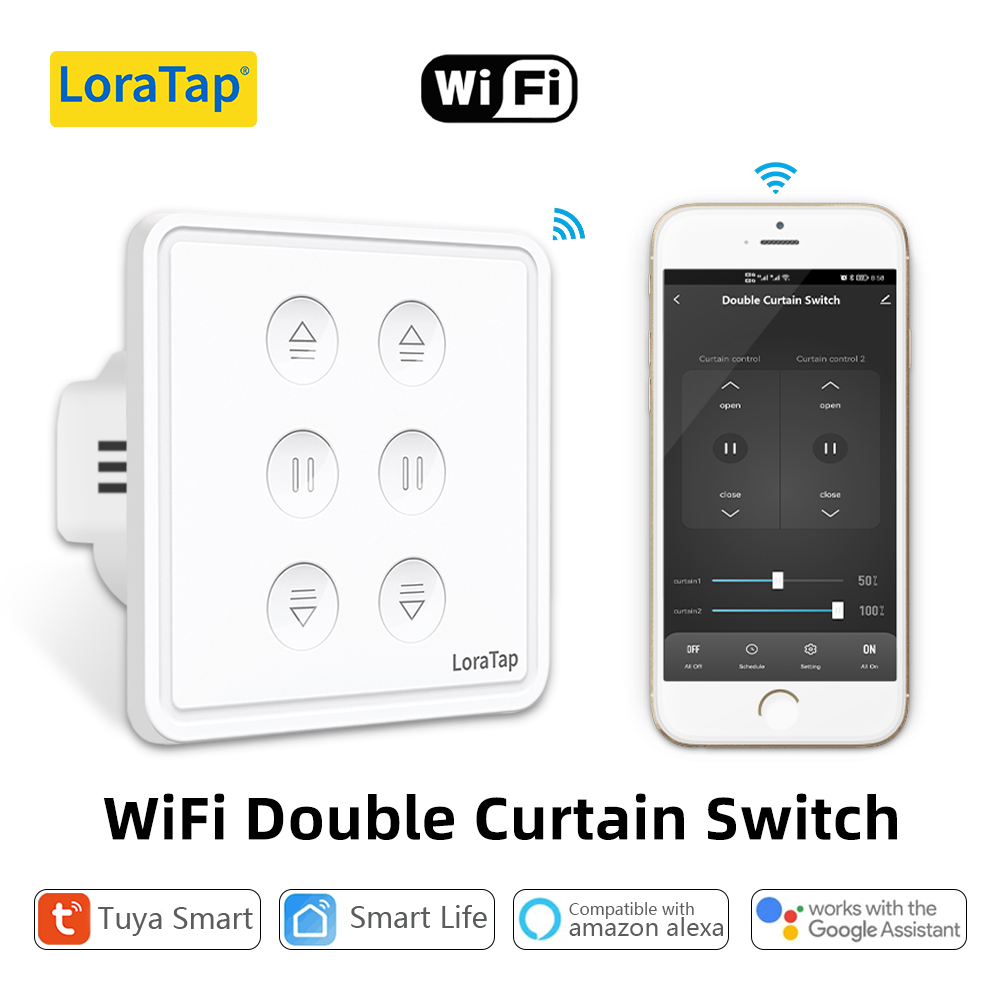

The First Tuya Smart Life EU Type Double Curtain Switch
- Double Curtain Switch
- EU Switch Size: 86mm*86mm*30mm
- Wireless Protocol: Wi-Fi 2.4GHz
- Button Type: Push Button
- Patent Design
Note before Order
- Please note at least 4 wires must be required for your motor, Live Wire 1, Live Wire 2 (for OPEN and CLOSE), Earth Wire and Neutral wire , otherwise it can't be connected to the motor.
- The switch can be compatible with any electric shutter motor with 100-250 VAC voltage input, 300W Max / Gang. but the neutral wire must be required for installation.
- Please be noted this is a double curtain switch, please contact us if you have any questions.

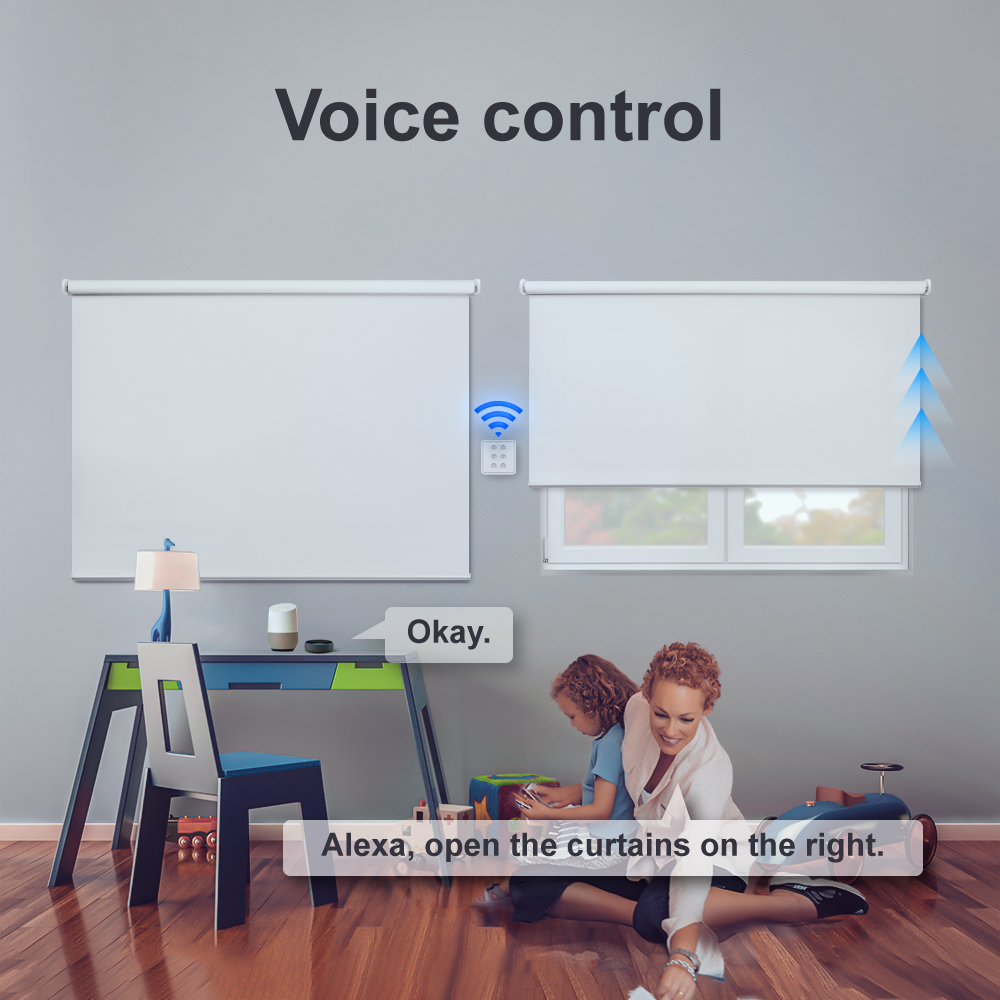

Hands-free Voice Control Smart Blind Switch
- Compatible with Alexa, Google Home
- With voice control to turn on and turn off the curtains.

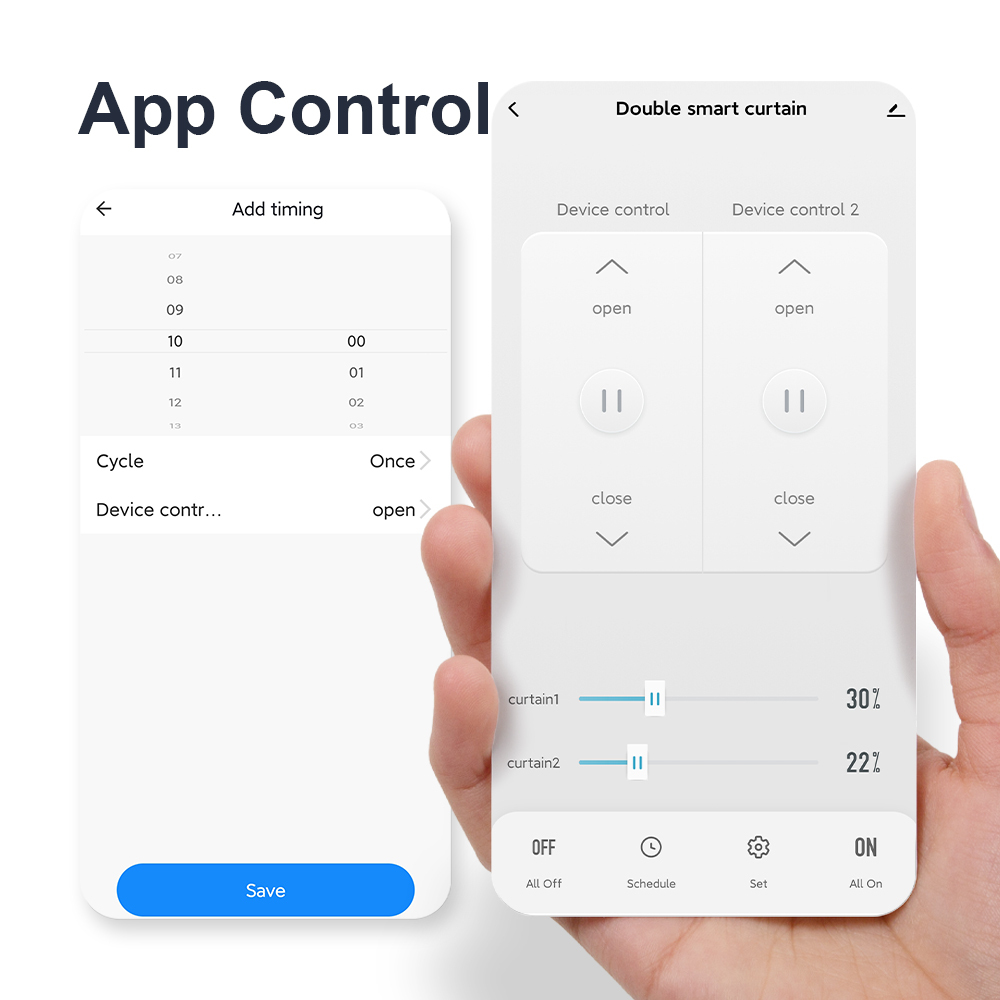

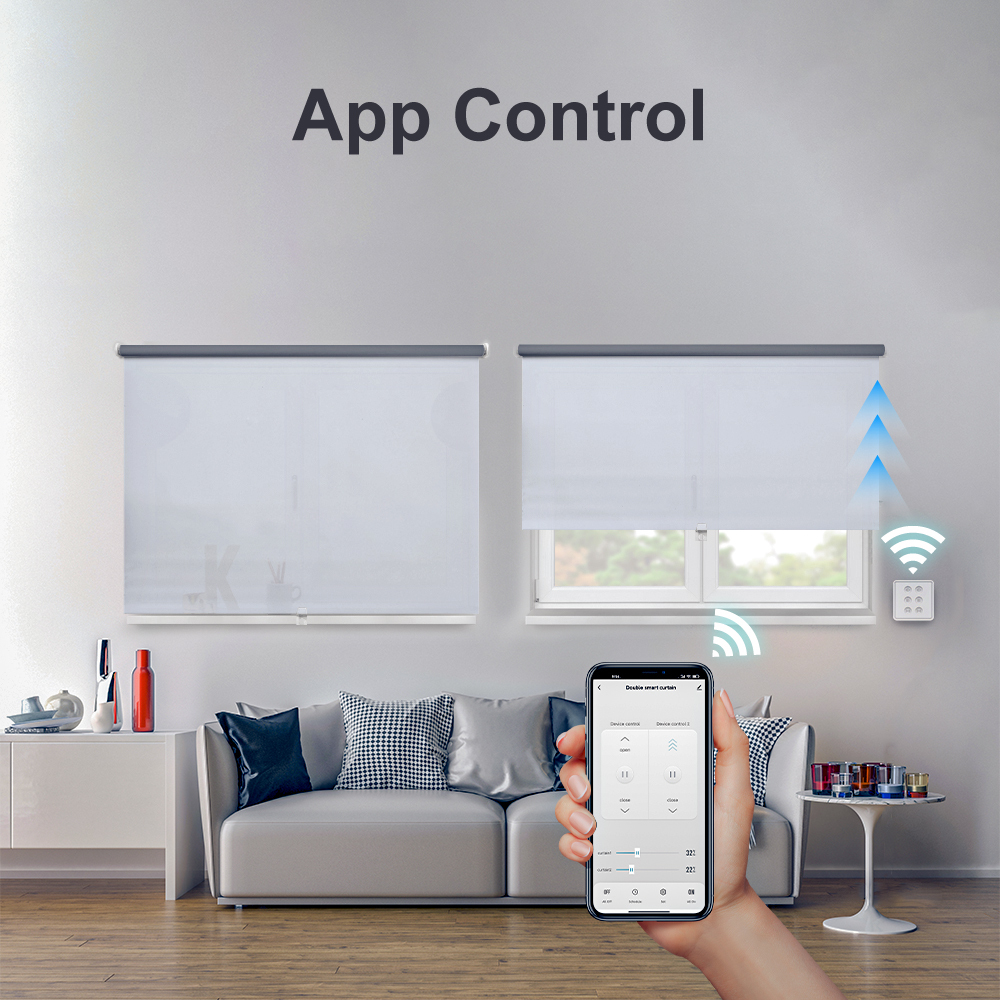

Smart Life Tuya App Control
- Mobile App Remote Control
- App Timing
- Support Both IOS and Android

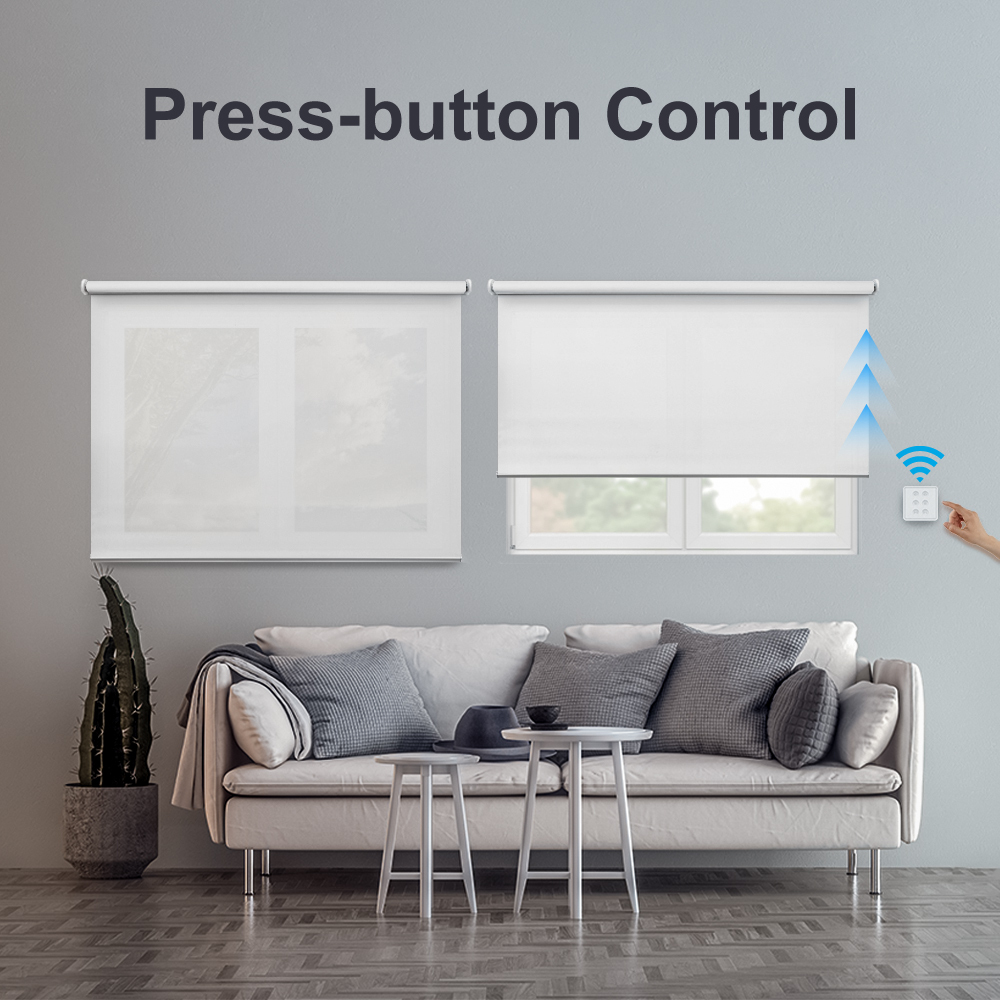

Physical Wall Switch Control
- This doube switch is a push button switch with 6 keys on the panel, you can control it on the switch panel directly.
More Possibilities on App Control
- Timing Control
- Check the curtain status in the App
Group Function and Device Sharing with App
You can create group in the APP to manage all the blinds in your house and share the device to all your family members.

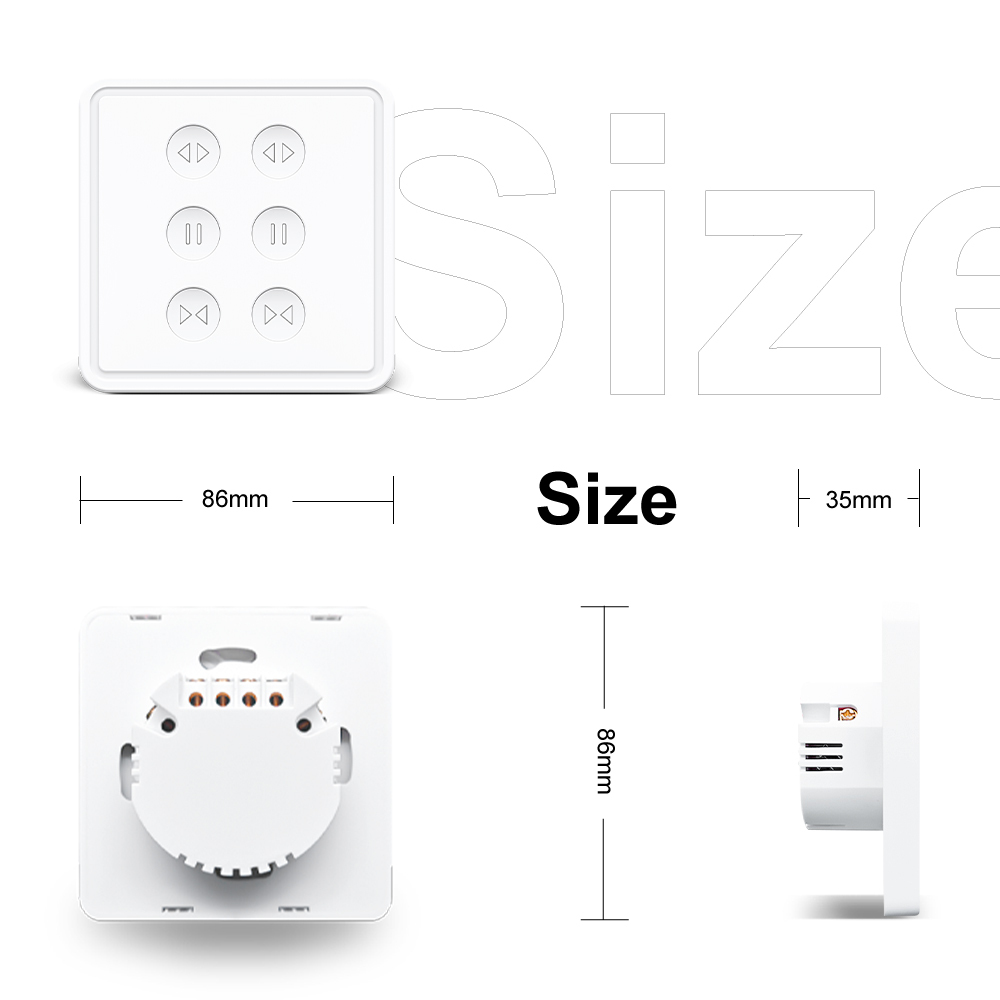

Switch Dimensions
- EU Size
- Dimensions: 86mm*86mm*35mm
- Patent Design
Specification
Input voltage: 100-250 VAC, 50 / 60Hz
Wiring: Neutral Wire, L1, L2, Earth Wire
Max Load: below 300 W / gang
App Name: Smart Life or Tuya App
Wireless Protocol: Wi-Fi 2.4 GHz 802.11 b / g / n (Not support 5Ghz)
Switch Channels: Double Control Curtain Switch
Standby Consumption: below 0.5W
Dimensions: 86mm*86mm*30mm
Button Type: Push Button
Plastic Material: Fireproof ABS
Produced by ISO9001 Factory: Yes
We have all the accessories you need in the box, you don't need to pay extra cost.

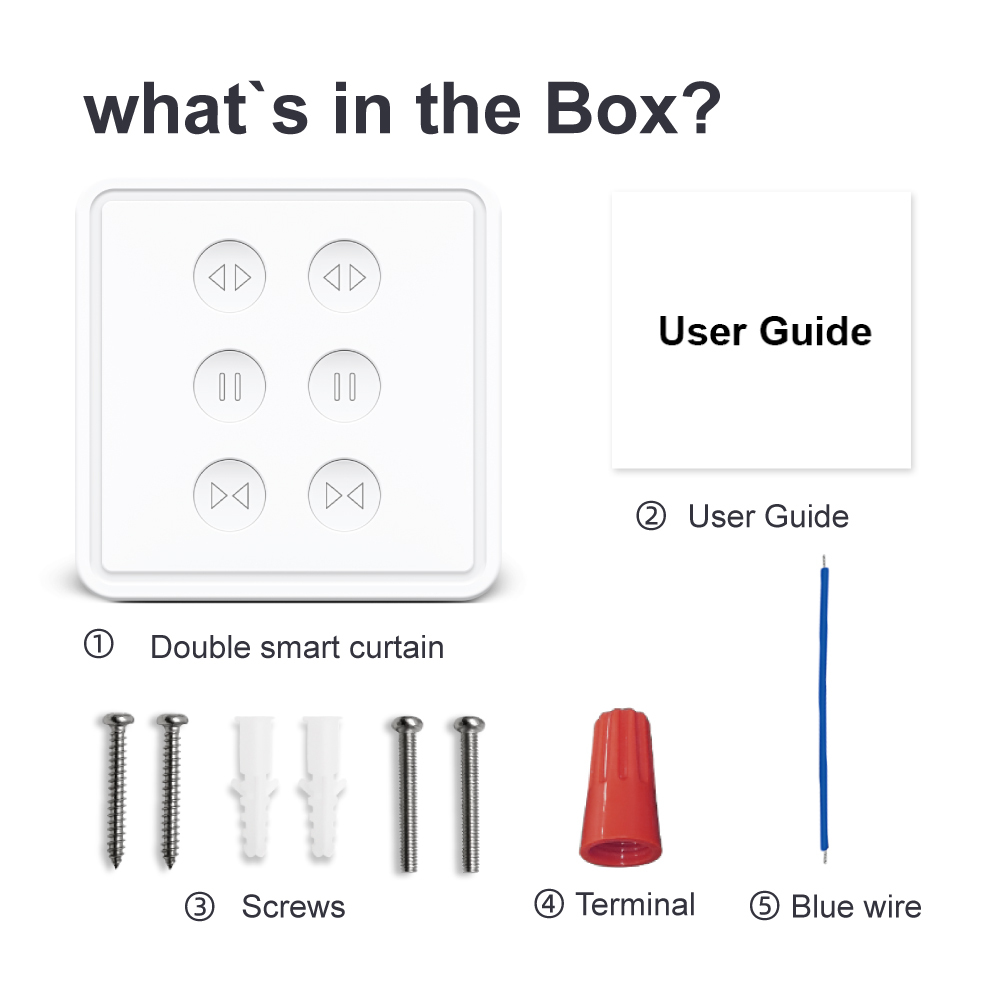

What's in the box?
1* Wi-Fi EU Double Curtain Switch(White Colour)
1 * Terminal for Netural Wiring
1 * Blue Cable for Netural Wiring
2 * screw kits
1 * User Guide
This switch is WiFi touch switch only, not with RF, it can't work with the RF remote in our store.
Q&A:
Question: Why the price is so competitive?
Answer: We are LoraTap official store. We are a manufacturer for smart home products, we can accept mass order and can provide technical support. Please feel free to contact us(support@loratap.com) if you have any questions.
Question: About Product
Answer: All products will be fully tested before ship from our factory, Please feel free to contact us(support@loratap.com) if any question for our products.
