Note before Order
This is a Wi-Fi only Curtain Switch, it can’t work with our RF curtain remote. Please don’t buy the extra RF remote to add the remote control, they are not compatible.
- Please check your motor is with 4 wires (Blue Wire, Brown wire, Black Wire, Green/Yellow Wire) before you buy our.
- The switch can be compatible with any electric shutter motor with 100-250 VAC voltage input, 300W Max / Gang. but the neutral wire must be required for installation.
- Please be noted this is a double curtain switch, please contact us if you have any questions.

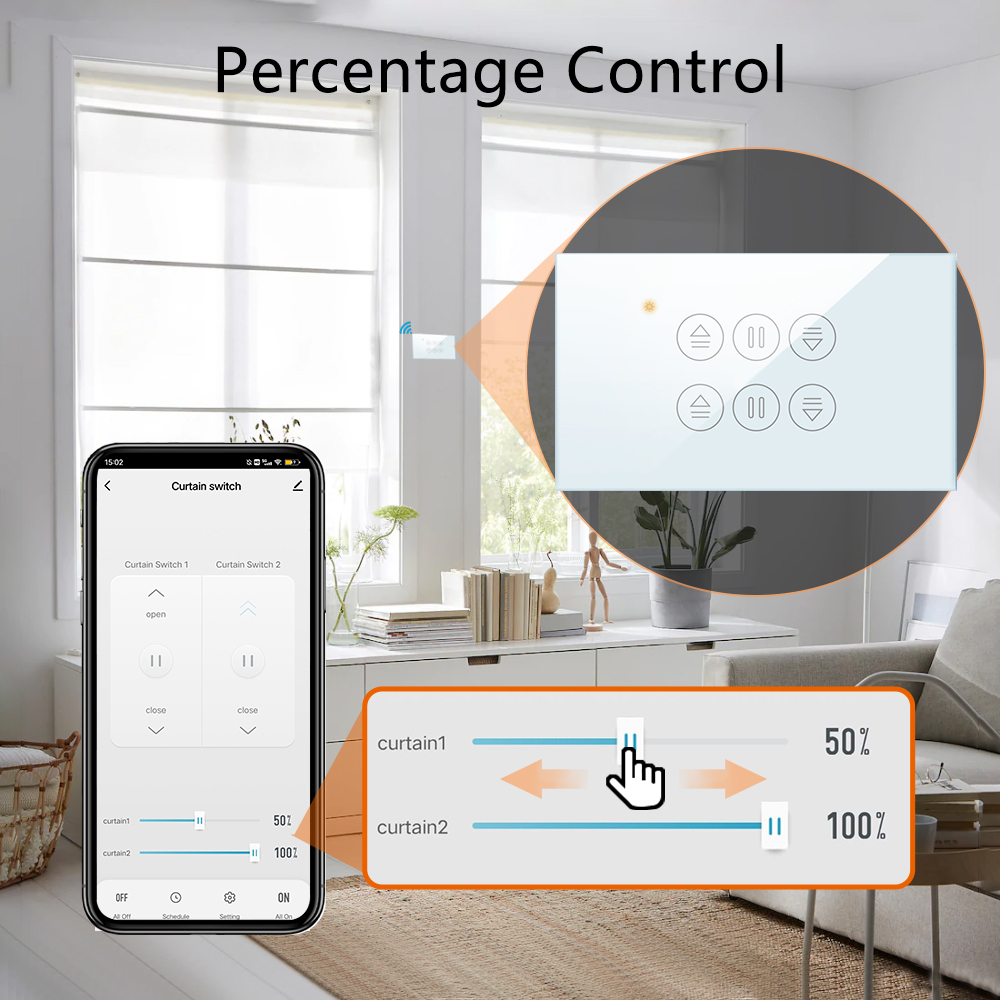

New Percentage Control Function
- You can control the opening and closing percentage of the curtains on the smart life app, and adjust the light and darkness of the room.
- And you can open the curtain to 50% as you need.
- You can check the shutter status even you are not at home.
Voice Control
- Compatible with Alexa, Google Assistant
- No need to walk to the window, one sentence can make the curtain open or close automatically.

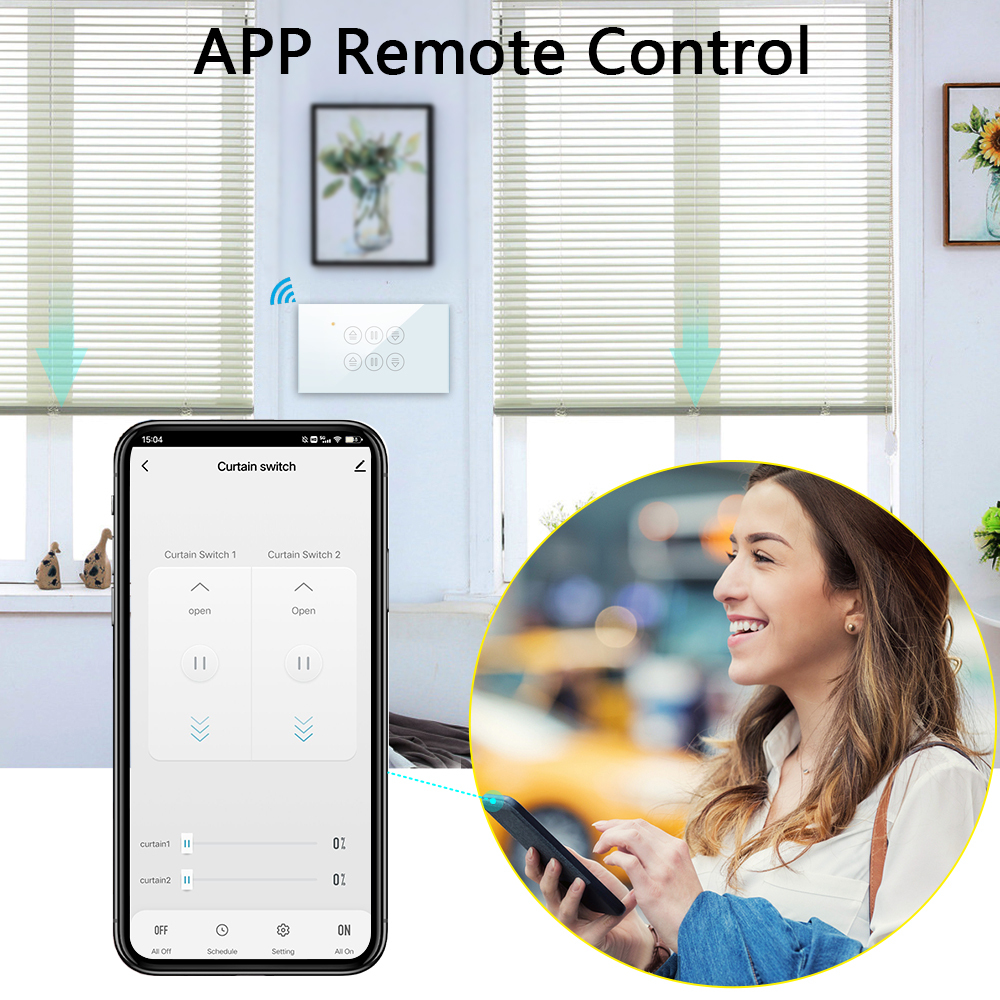

App Remote Control
- App Name: Tuya, Smart Life
- Support Both IOS and Android
- You can control your smart curtains by mobile phone anytime, anywhere as long as it's with network.
Tempered glass touch panel
Tempered glass touch panel, safe and stylish, high quality, moisture-proof, safe operation even with wet hands.

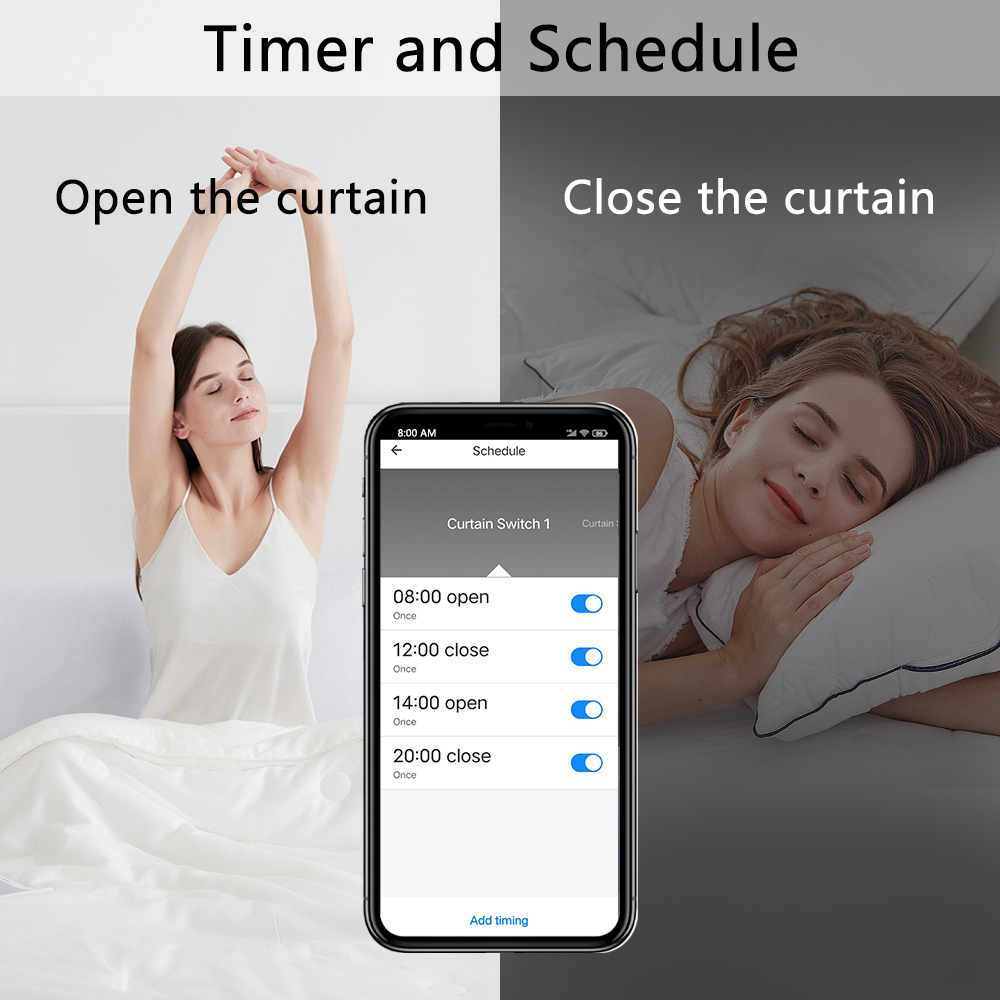

Timer and Schedule
- You can set the timer according to your work and rest habits, and the curtains will be automatically opened or closed within a specified time.
- For example, the curtains will automatically open at 8 in the morning and the curtains will automatically close at 20 in the evening.
Open the BT automatic pop-up window to discover the device
Support BT speed matching network, save tedious operations, open the APP to automatically discover the device
Group Function and Device Sharing with App
You can create group in the APP to manage all the blinds in your house and share the device to all your family members.

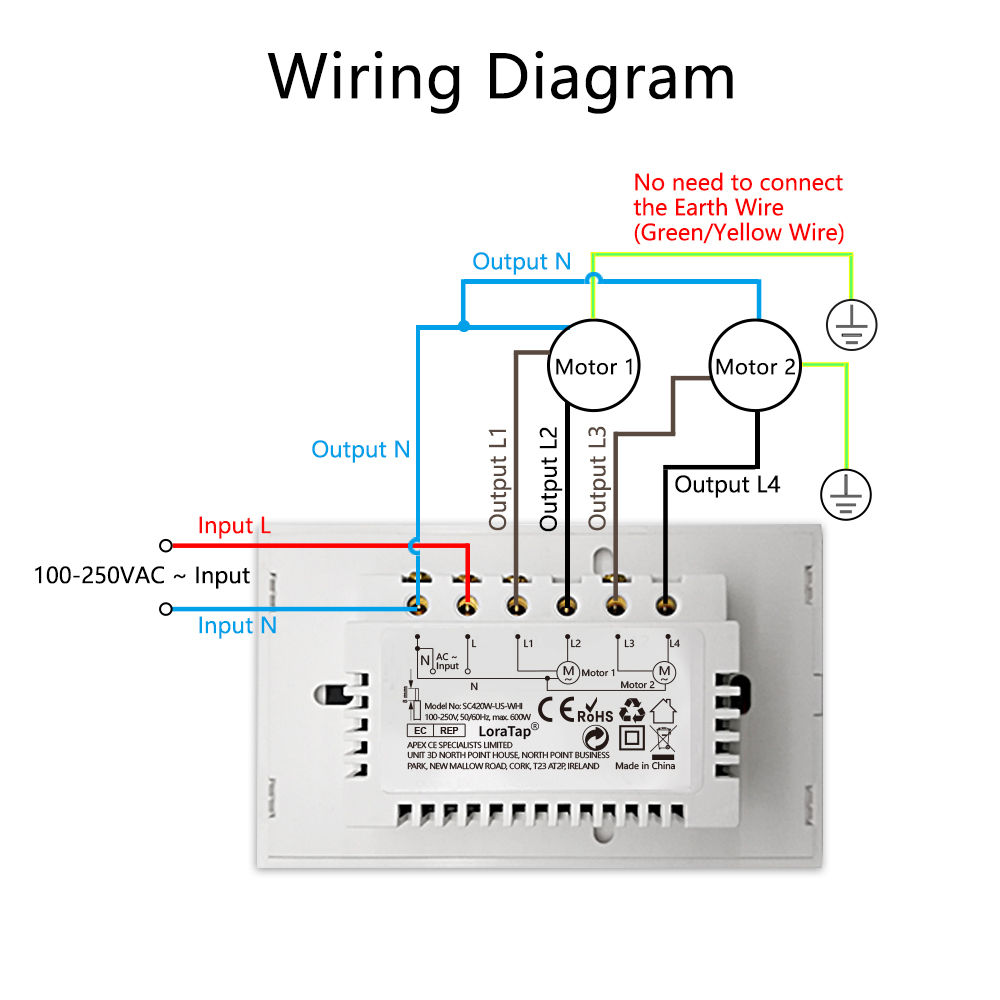

Wiring Diagram
- If you have no wiring experience, please find a professional electrician.
- Our smart device can just work with 4 wire classic AC motor, please check it before you place order.
Specification
Input voltage: 100-250 VAC, 50 / 60Hz
Wiring: Neutral Wire, L1, L2, Earth Wire
Max Load: below 300 W / gang
App Name: Smart Life or Tuya App
Wireless Protocol: Wi-Fi 2.4 GHz 802.11 b / g / n (Not support 5Ghz Wi-Fi)
Switch Channels: Double Control Curtain Switch
Standby Consumption: below 0.5W

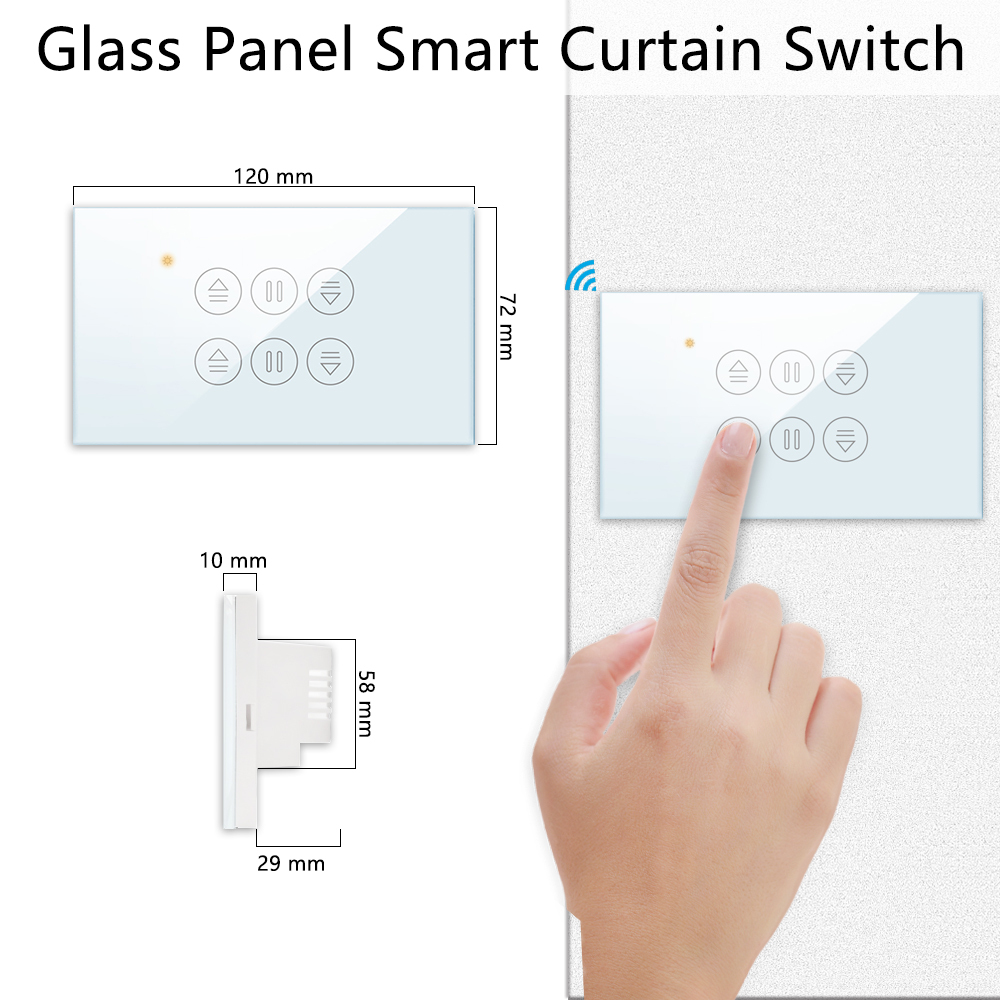

Dimensions: 120mm*72mm*39mm
Button Type: Touch Panel Button
Plastic Material: Fireproof ABS
Produced by ISO9001 Factory: Yes
We have all the accessories you need in the box, you don't need to pay extra cost.
What's in the box?
1 * Double Smart Curtain Switch
1 * User Guide
2 * Screws Kit
1 * Blue Wiring
1 * Terminal
