Tuya Smart Life RF WiFi Blinds Roller Shutter Curtain Switch Relay Module Multi Channel Remote Voice Control Google Home Alexa

SC5714WSC-V1
Sold:8
Price:
$76.99
Quantity:
-
+
(5986 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Reviews
Free Shipping!

Note before order:

The RF curtain remote can just work with the roller shutter switch in this listing, because the curtain switch in this listing is RF + WiFi version.
Please don’t buy the curtainswitches in other listing even they are cheaper, they are not compatible.

- Please check your motor is with 4 wires (Blue Wire, Brown wire, Black Wire, Green/Yellow Wire) before you buy our.
- Before using App to control the shutter, please keep the wall manual switch at 'STOP' position, otherwise , the App can't work, it's to protect the motor.
- Please contact the seller online if you have any questions for compatibility.

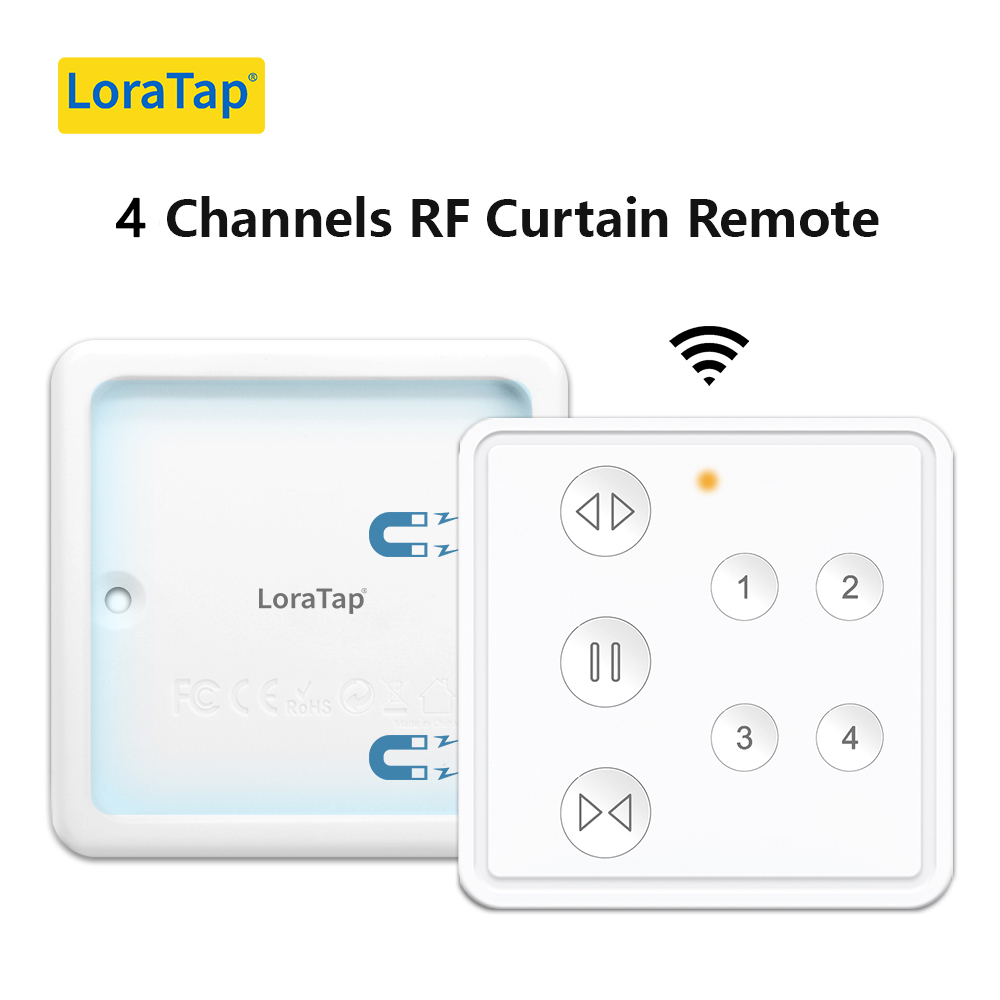

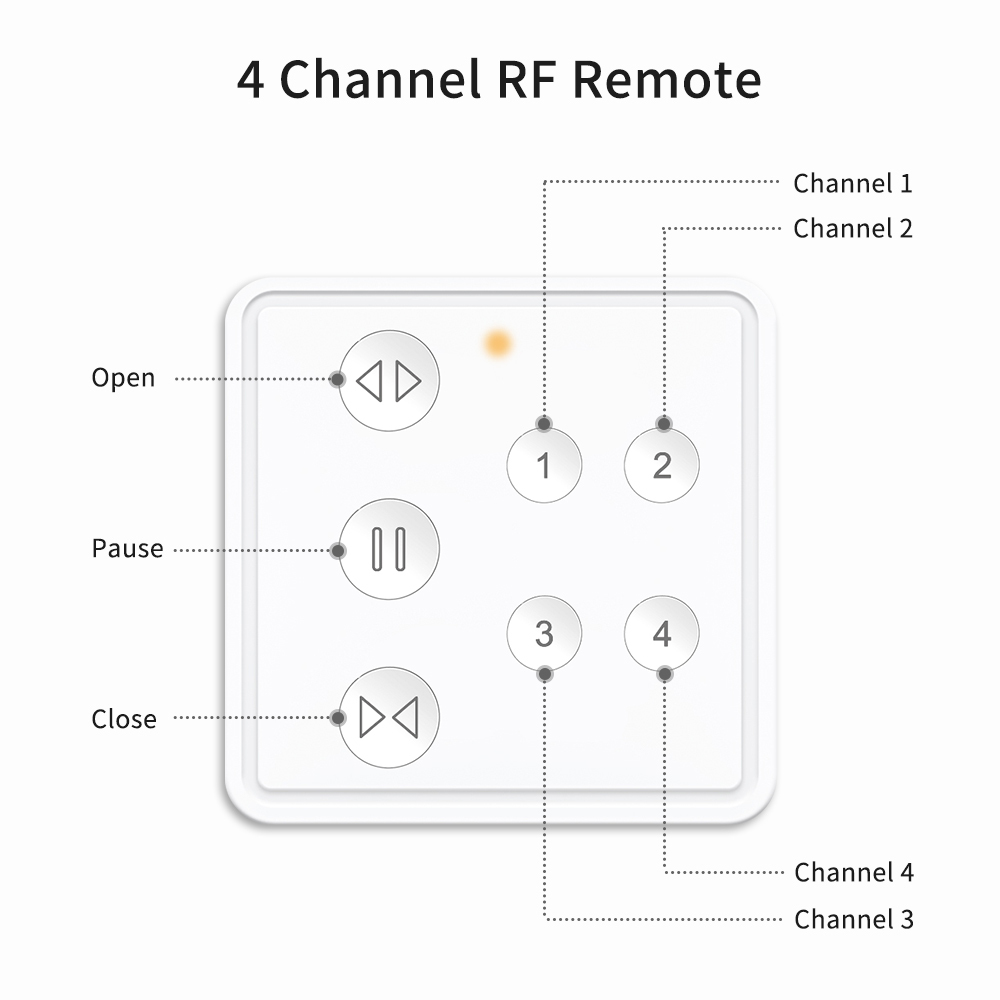

NEW ARRIVAL-4 Channels Wireless Curtain Switch Remote EU type

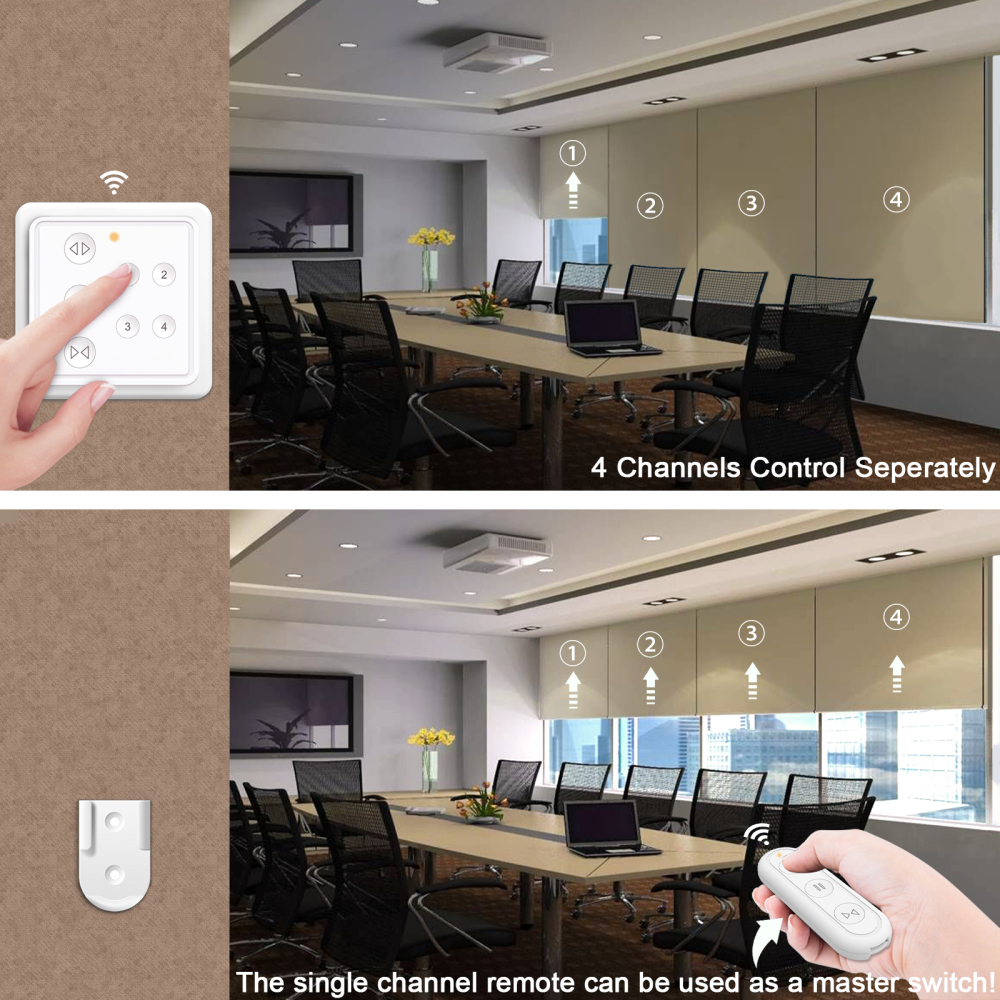

You can use 1 remote to control up to 4 curtain blinds with this remote separately.


Mulit Options according to Your Need, if you have any question about this product,
please be free to contact with seller.

1.If you just need one single channel, then you can buy single channel RF curtain remote and 1 relay module from this link

2. If you need 2 or 3 Channel Control Separately, you can buy 1 piece of 4 Channels Remote and 2 or 3 relay modules from this link

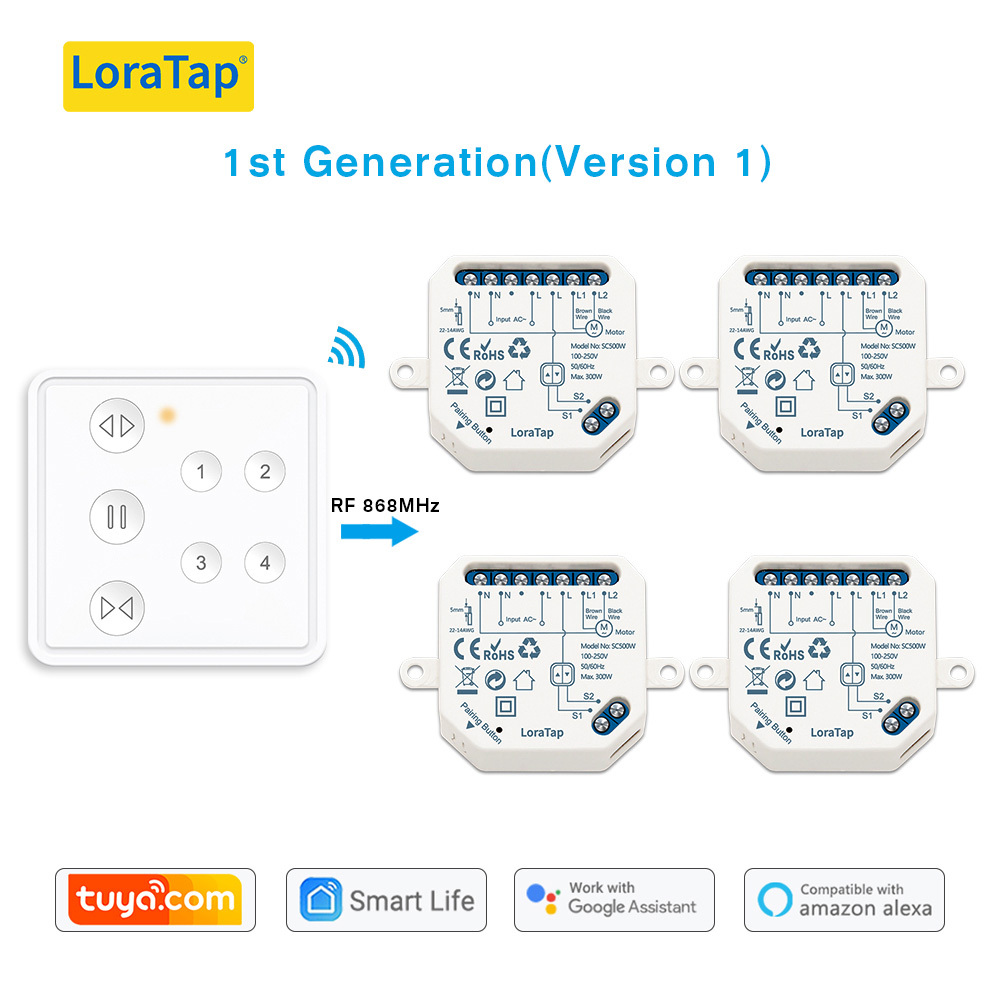

3. If you need 4 Channels Control Separately, then you can just buy the kit of 1 Remote 4 Modules

4. If you need 1 remote control all curtain blinds the same time up and down, like group control not separately, then you can buy 1 Channel Remote
and multi RF+WIFI relay modules in this link


WiFi Shutter Switch Module with RF Remote Control Switch

Multi ways to control the electrical curtain blinds

- App Remote Control ( Open, Pause, Close)
- Use a Manual Remote to control the curtain blinds, ( Open, Pause, Close) Control Range up to 30m
- Voice Control with Google Home, Amazon Alexa, (OPEN, CLOSE, and you can make a scene in smart life App to stop the curtain, and make a routine
in Google home, or alexa App to activate to stop the curtain by voice control)

Built in RF module, enable you can remote control your blinds shutter even if you have trouble with WIFI.

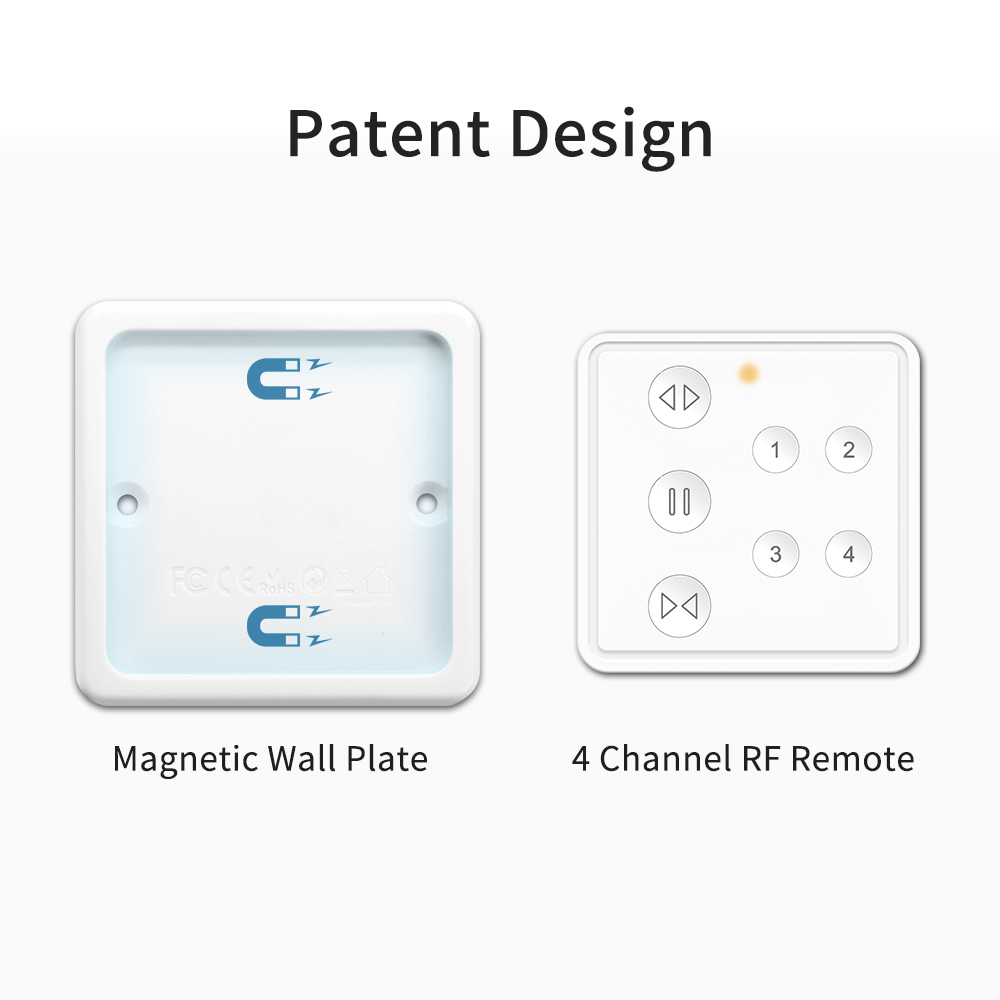

The remote is with a wall mount, you can also mount it on wall where would be convenient for you.

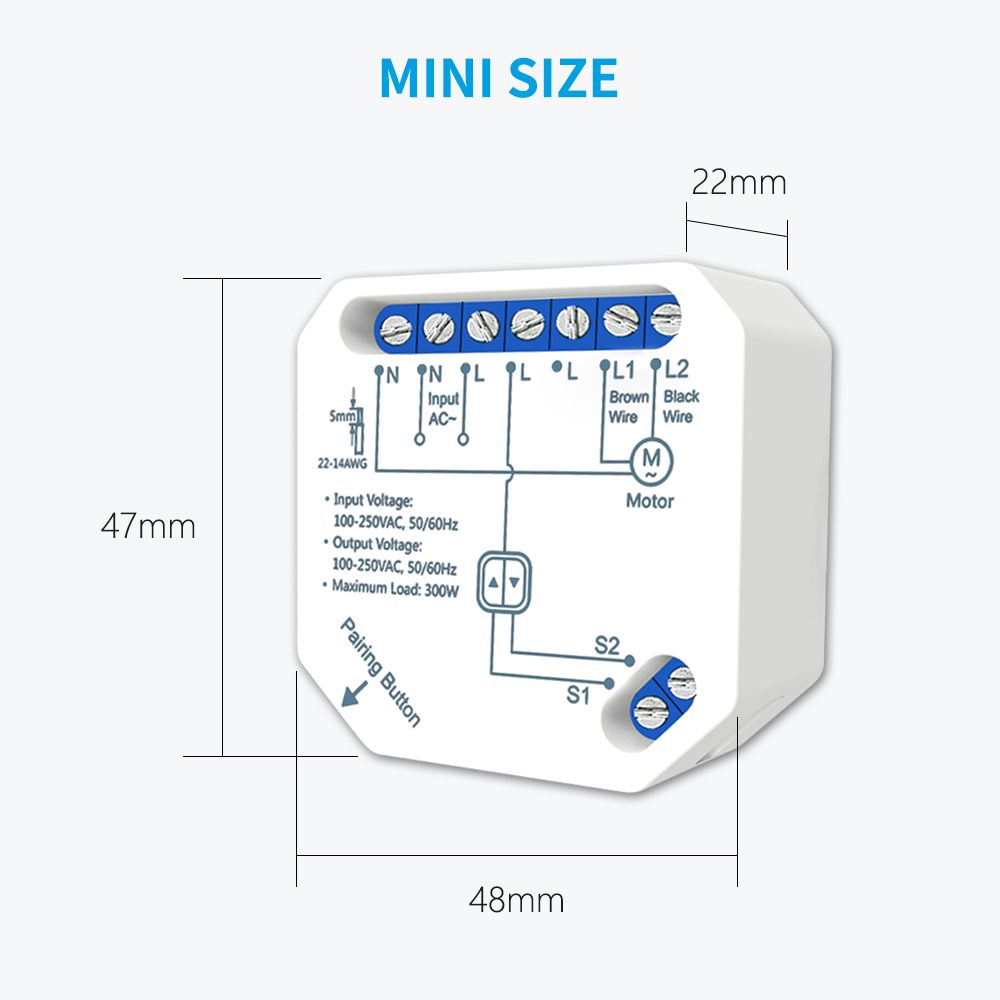

Compact Size

Tiny size can fit most junction box


2 Wiring Diagram according to your need

1. If you need to connect the manual switch ( please only connect with push button and back switch type, not rocker)

2. After install the module, the manual wall switch can't pause the curtain in the middle, but the remote or App is able to pause the curtain


If you don't have a wall maual switch

If you don't need to connect manual wall switch, please connect wires as below , it's simpler.
You can use remote and App to control the roller shutter.


Main Features
- Free APP Name: Smart Life, Tuya

- Timing Function, APP remote control

Program the switch module on App 'smart life/Tuya', then your curtain, blind, roller shutter can be remote controlled by phone and you can set timing
schedule for it, like open at 7:00am, close at 7:00pm, then your curtain blind can open or close automatically when time is up.

You can control your smart curtains by mobile phone anytime, anywhere as long as it's with network, Control Your Curtain Anywhere with Your mobile
2G, 3G, 4G network.


Voice Control

Hands-free Smart Blind Switch Compatible with Alexa, Google Home.
With voice control to turn on and turn off the curtains.

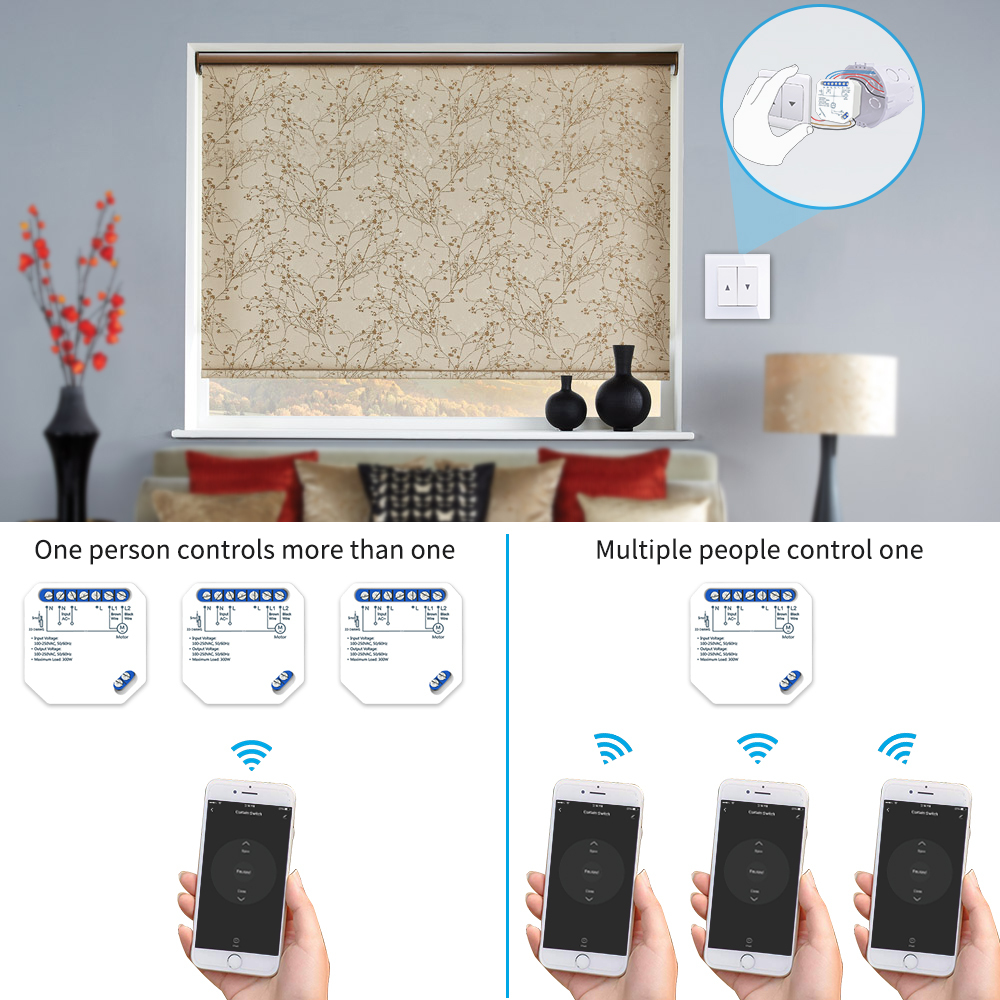

Group Function and Device Sharing

You can create group in the APP to manage all the blinds in your house and share the device to all your family members.



Installation Method

- You can install the module in the box or mount it besides the motor as you need.
- User Manual with 8 pages detailed instruction for how to connect curtain switch, how to connect App. Five languages available, Spanish, French,
Germany,Italian and English.
Please contact us if you have any special demand for the user guide.

Specification

Input voltage: 100-250 VAC, 50 / 60Hz
Wiring: Neutral Wire, L1, L2, Earth Wire
Max Load: 300 W
Wi-Fi Standard: 2.4 GHz 802.11 b / g / n (Not support 5Ghz)
RF Wireless Frequency: 868Mhz
Standby Consumption: below 0.5W
Dimensions: 48mm * 47mm * 22mm








Questions & Answers

Question: Why the price is so competitive?
Answer: We are LoraTap official store. We are a manufacturer for smart home products, we can accept mass order and can provide technical support.
Please feel free to contact us(support@loratap.com) if you have any questions.

Question: About Product
Answer: All products will be fully tested before ship from our factory, Please feel free to contact us(support@loratap.com) if any question for our products.
