Wireless Remote Control DIY Light Switch with Magnetic Plate 10A works with manual wall switch

SS511Q1
Sold:2
Price:
$29.99
Quantity:
-
+
(99 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Reviews



Works with the Exsiting Wall Switch

Your original wall manual switch still can work, even you turn off the manual wall switch, you still can use the remote switch to turn on the light. Remark: It can just work with toggle wall switch, can't work with push button wall switch.

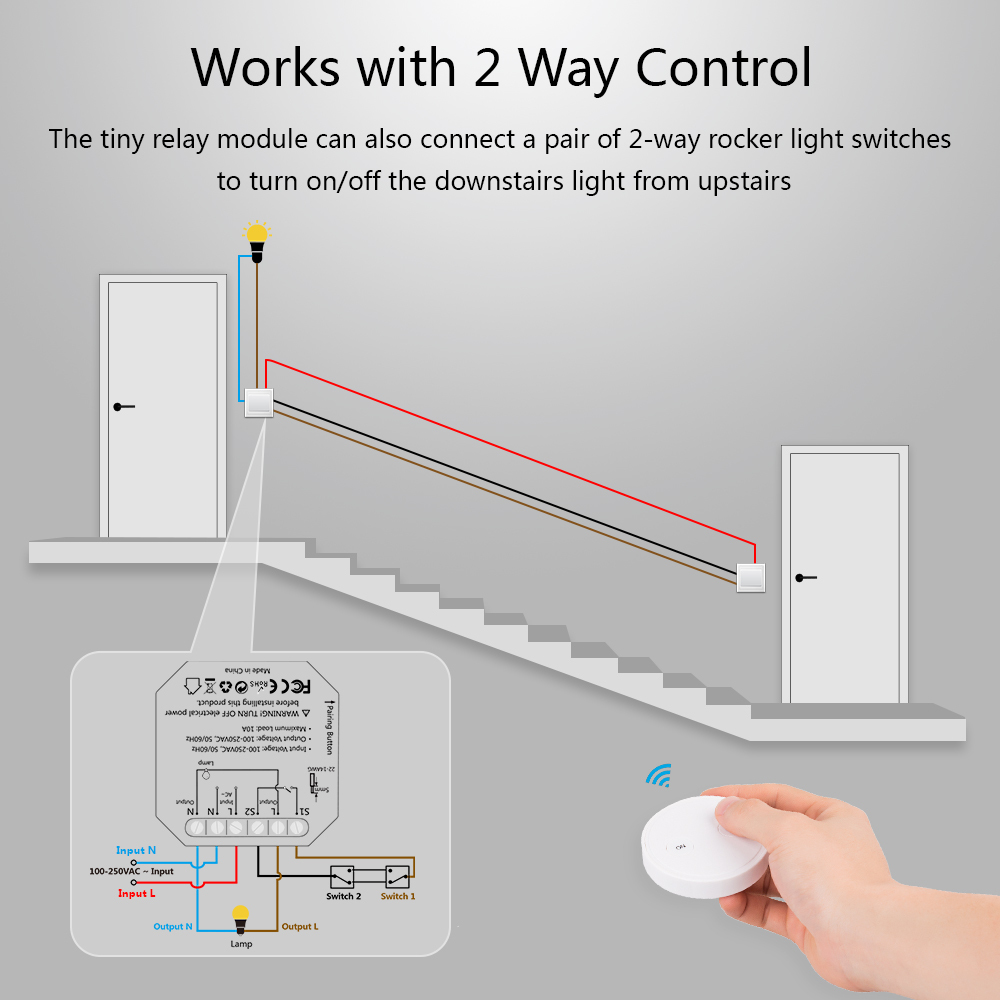

Works with 2 Way Control

It is compatible with double control wall switch. So you can extend the 3 way switch in your home. No need to replace the original switch.

Wall Switch and Portable Remote Control 2 in 1

The remote switch can be mounted on the base of the magnetic plate fixed with the double-sided adhesive and works like a traditional switch, it is also removable and portable from the plate and can be used as a portable remote control, if so you can place it anywhere easy to reach

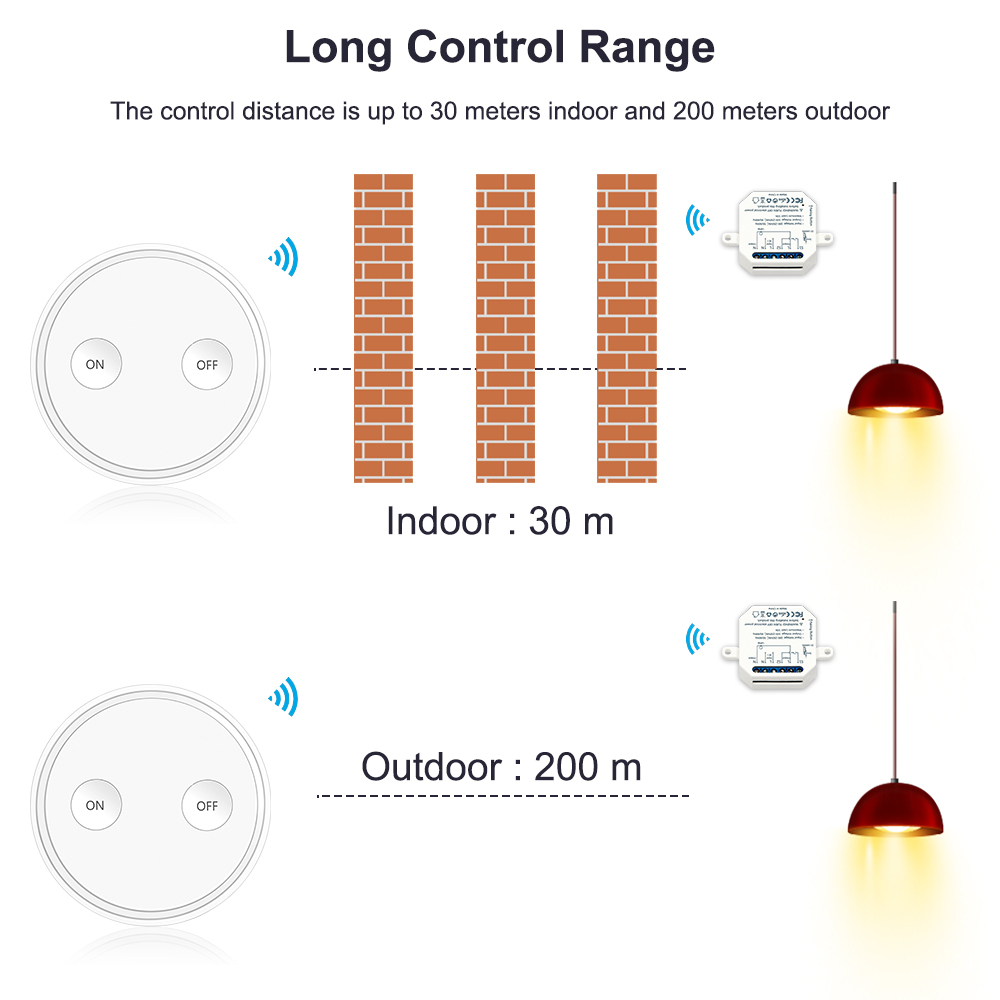

Long Distance Remote Control

The range of wireless lighting control up to 30m indoors, the signal can penetrate through windows, walls, glass and ceilings, up to 200m outdoors without obstacles, allowing you to control the lamp from anywhere in the House.

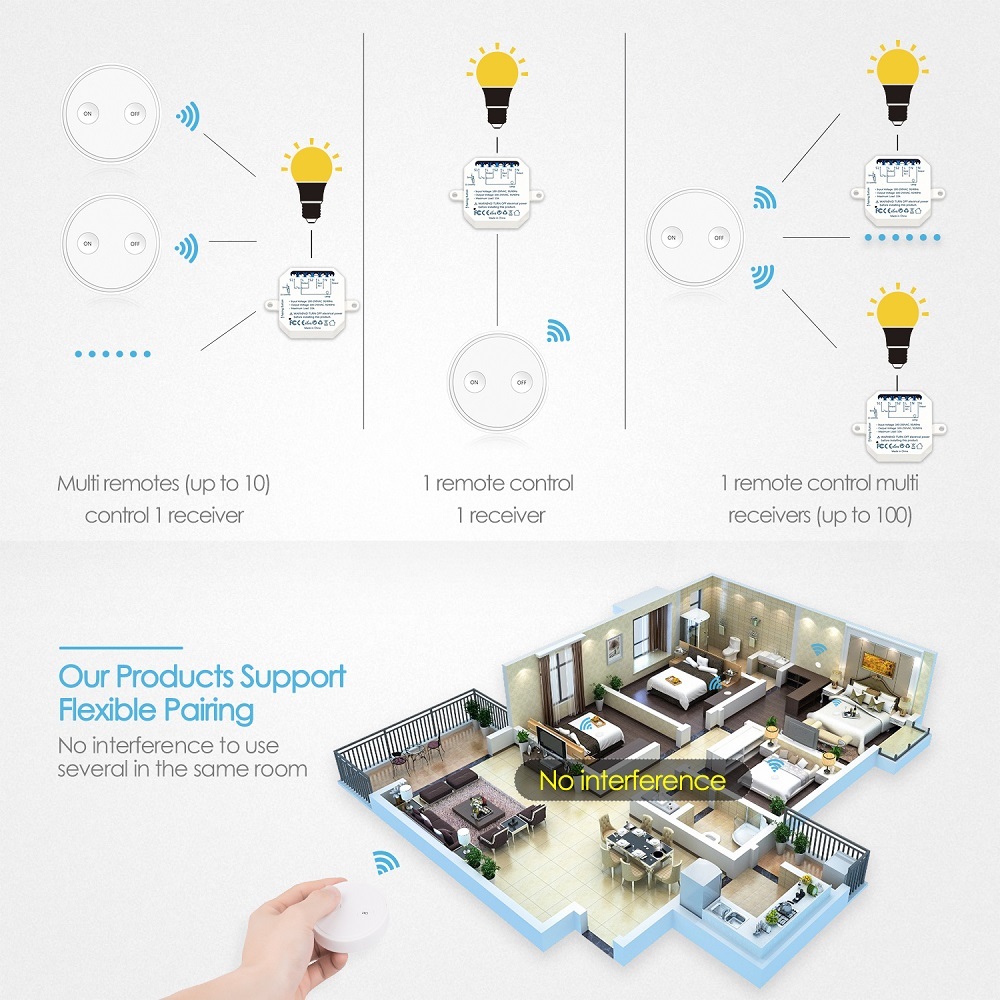

No Interference

Our wireless switch support flexible pairing and you can use many switches in your house without any interference.

Tiny Compact Size be Available for Most EU Junction Box

Ultra thin design make it can be hidden in any junction box.

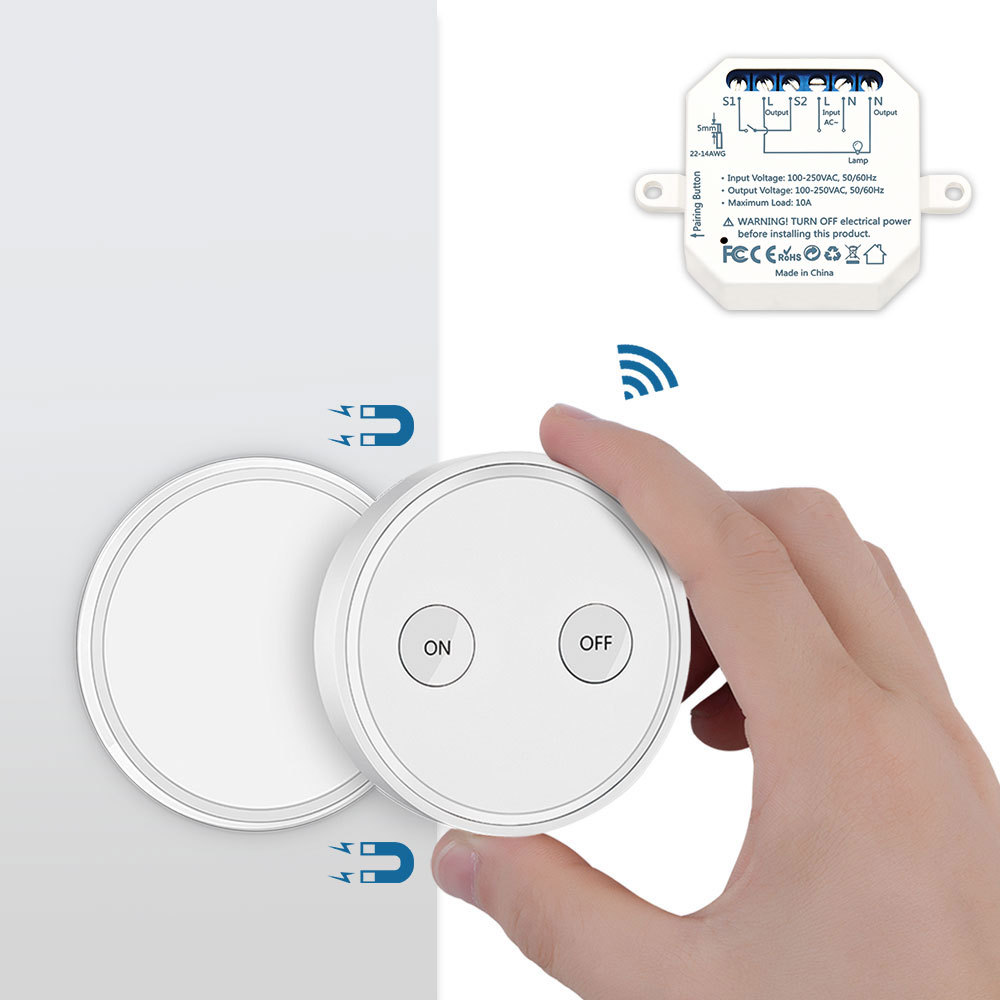

Remote Control with Magnetic Base

Mountable and Moveable Remote Control. Convenient for every family member.

Wiring Diagram for One Way Switch

If the module need to work with on/off toggle switch.

Wiring Diagram for Double Control Switch

If the module need to work with 2 way switch.

Wiring Diagram for Normal ON/OFF Control

If the module doesn't need to work with on/off toggle switch.

Specification

Transmitter(Remote)
Color: white
Buttons: 2 Buttons, ON/OFF
Signal Range: Indoor range up to 30m, outdoor range up to 200m, depending on local circumstances
Frequency: RF 868MHz
Lifetime: over 220 thousand clicks
Battery Type: CR2032 (included)
Battery Lifetime: up to 10 years
Switch Dimensions(Dia * H): 68*16mm

Relay Receiver
Color: white
Input Voltage : 100-250VAC
Output Voltage : 100-250VAC
Max. Load: 10A
Max. Power: 2500W
Receiver Dimensions: 46mm*46mm*18mm
Wireless Type: RF 868Mhz
Works with toggle wall switch



We have all the accessories you need in the box, you don't need to pay extra cost.

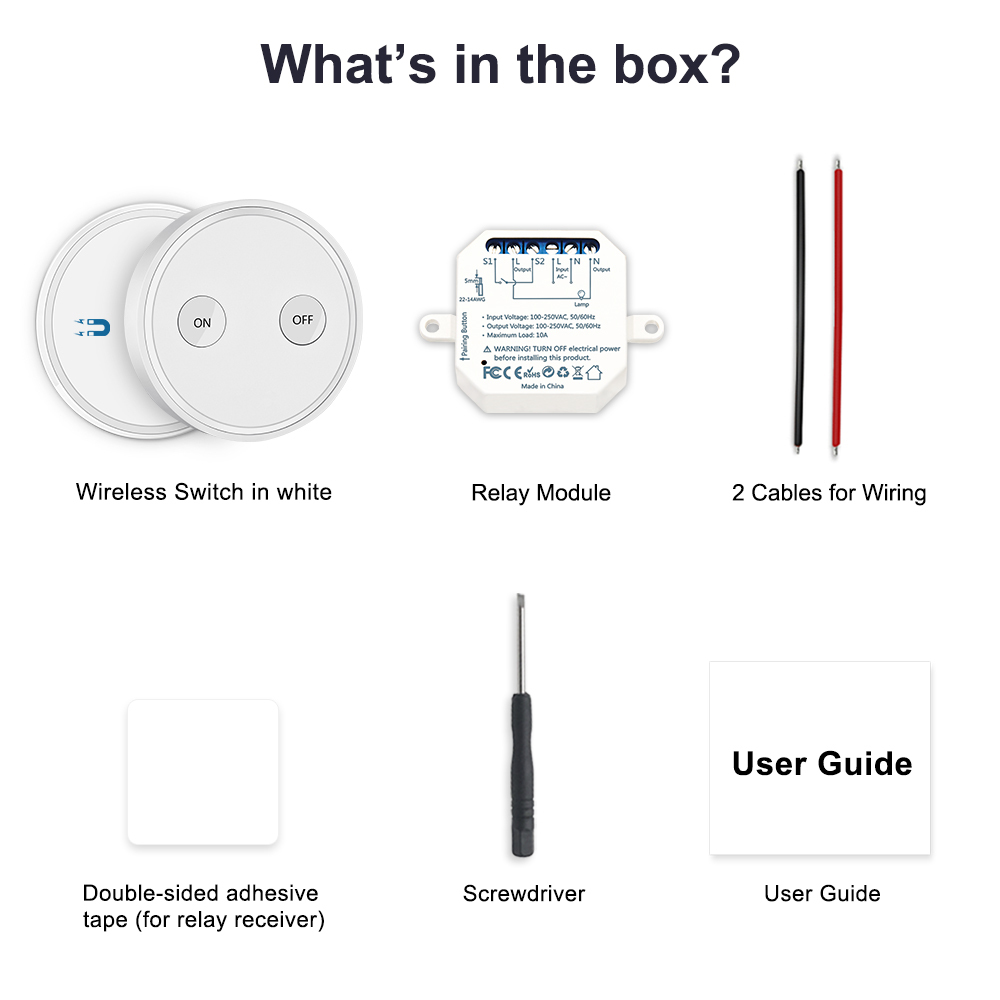

What's in the box?

1 * Remote
1 * Relay Receiver Module
1 * CR2032 Battery(included in the remote)
1 * Screwdriver
1 * Double-sided tape
2 * Cable for Wiring
1 * English User Guide
